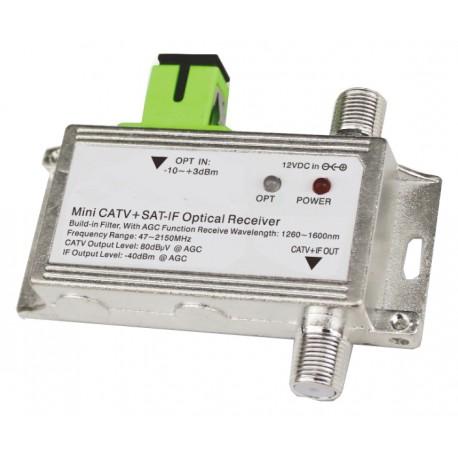

Receptor optico Mini FTTH 2020A CATV SATV 1100-1600nm 47-2150MHz Conector RG6 F SC/APC
- Tamano mas pequeno y facil instalacion
- Rojo-led para indicacion de potencia
- Caracteristicas opcionales
| RF Connector | F-female | ||
| Optical Connector | SC/APC or FC/APC | ||
| Power Supply | F-female | ||
| Optical Parameter | |||
| Responsivity | A/W | ≥09 | |
| Input Optical Power | dBm | -10~+3 -7~+2 |
AGC |
| Optical Return Loss | dB | ≥45 | |
| Input Wavelength | nm | 1550±20 | |
| Optical Fiber Type | Single Mode | ||
| RF Parameter | |||
| Frequency Range | MHz | 47-860 950-2150 | Receive CATV signal
Receive SATV signal
|
| Flatness | dB | ±075 | |
| Output Level | dBAV | ≥80 @CATV ≥70 @SATV | -1dBm input power |
| CNR | dB | ≥50 | -1dBm input power |
| CSO | dB | ≥62 | |
| CTB | dB | ≥65 | |
| Return Loss | dB | ≥16 | |
| Output Impedance | Ω | 75 | |
| Other Parameter | |||
| Power Supply | VDC | 12 | |
| Power Consumption | W | <2 | |
| Dimensions | mm | 1009828 |
