pinza amperimetrica digital prasek premium pr-206a acdc600v 1000a voltaje amperaje resistencia frec temperatura
Información del Vendedor

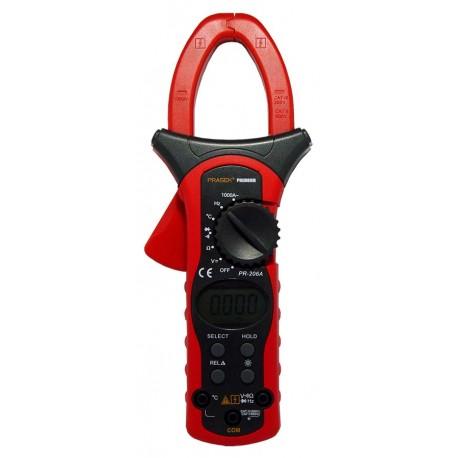

AibitechPinza Amperimetrica Digital Prasek Premium PR-206A ACDC600V 1000A Voltaje Amperaje Resistencia Frec Temperatura
- AC Corriente- 400A/1000A
- AC Voltaje- 4V/40V/400V/600V
- DC Voltaje- 400mV/4V/40V/400V/600V
- Resistencia- 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ
- Frecuencia- 10Hz ~ 10MHz
- Temperatura- -40 °C ～ 1000°C
- Auto rango profesional
- Medidor de diodos
- Buzzer de continuidad
- Data Hold
- Estado de bateria baja indicado en pantalla
PR-206ASeries | |||
1000ADigitalClampMeters | |||
PR-206A | |||
Specification | |||
Model |
|
| PR-206A |
AC CurrentA | 400A/1000A |
| ±15%+5 |
AC Voltage V | 4V/40V/400V/600V |
| ±12%+5 |
DC Voltage V | 400mV/4V/40V/400V/600V |
| ±08%+1 |
Resistance Ω | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ |
| ±1%+2 |
FrequencyHz | 10Hz~10MHz |
| ±01%+3 |
Temperature °C | -40 °C ～1000°C |
| ±2%+8 |
Features | |||
DisplayCount |
| 3999 | 3999 |
Auto Range |
| √ | √ |
Jaw Capacity |
| 40mm | 40mm |
DutyCycle | 01%~999% | √ |
|
Diode |
| √ | √ |
Auto PowerOff |
| √ | √ |
ContinuityBuzzer |
| √ | √ |
Low BatteryIndication |
| √ | √ |
Data Hold |
| √ | √ |
Relative Mode |
|
| √ |
LCD Backlight |
| √ | √ |
Full Icon Display |
| √ | √ |
InputImpedance forDCV | Around 10MΩ | √ | √ |
GeneralCharacteristic | |||
Power | 9V Battery（6F22 | ||
LCD Size | 37mmX18 mm | ||
ProductColor | Red and Grey | ||
ProductNetWeight | 350g | ||
ProductSize | 236mmX97mmX40 mm | ||
Standard Accessories |
| ||
PR-206A-BatteryTestLeadCarrying Bag，PointContactTemperature | |||
Standard Individual Packing | GiftBoxEnglish Manual | ||
Standard QuantityPer Carton | 20 PCs | ||
Standard Carton Measurement | 530mmX360mmX385mm 0073 CBMPer Standard Carton | ||
Standard Carton Gross Weight | 17Kg |
