multimetro digital uni-t ut-71b true rms acdc1000v voltaje corriente resistencia capacitancia temp diodo continuidad
Estado
Disponible
Cantidad
multimetro digital uni-t ut-71b true rms acdc1000v voltaje corriente resistencia capacitancia temp diodo continuidad
Precio
S/ 611.86
Información del Vendedor
AibitechBUSCAR POR CARACTERÍSTICAS

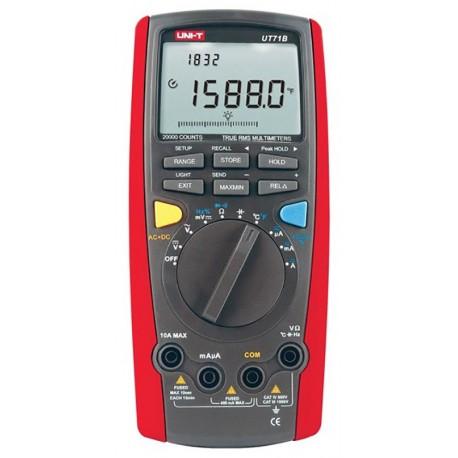

Multimetro Digital UNI-T UT-71B True RMS ACDC1000V Voltaje Corriente Resistencia Capacitancia Temp Diodo Continuidad
PARTICULARIDADES
- Funciones-
- corriente AC/DC
- voltaje AC/DC
- resistencia
- capacitancia
- frecuencia
- temperatura ºC y ºF
- chequeo de continuidad de circuitos con alarma sonica
- test de diodos
- Seleccion automatica del diapason
- Funcion Data Hold retencion de datos
- Funcion Peak Hold retencion de valores pico
- Modo de espera
- Proteccion de sobrecargas hasta 10 A
- Diagrama analogico
- Senal de cambio de corriente AC
- Registracion y recuperacion de datos
- Medicion RMS de corriente AC
- Mediciones Max/Min
- Modo relativo de pantalla
- Indicador de bateria baja
- Apagado automatico
| Specifications | Range | Best Accuracy |
| Model | UT71B | |
| DC Voltage V | 200mV/2V/20V/200V/1000V | ±005%+5 |
| AC Voltage V | 2V/20V/200V/1000V | ±06%+40 |
| DC Current A | 200μA/2000μA/20mA/200mA/10A | ± 015%+20 |
| AC Current A | 200μA/2000μA/20mA/200mA/10A | ± 08%+15 |
| Resistance Ω | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ | ±04%+20 |
| Capacitance F | 20nF/200nF/2μF/20μF/200μF/2mF/20mF | ±12%+20 |
| Frequency Hz | 20Hz-200MHz | ±01%+15 |
| Temperature °C | -40°C ～ 1000°C | ±1%+30 |
| Temperature °F | -40°F～1832°F | ±15%+50 |
| Features | ||
| Display Count | 19999 | |
| Auto Range | √ | |
| True RMS | √ | |
| Bandwidth Hz） | 100KHz | √ |
| Duty Cycle | 10% ～ 90% | ±1%+30 |
| Diode | √ | |
| Auto Power Off | √ | |
| Continuity Buzzer | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Relative Mode | √ | |
| MAX/MIN | √ | |
| Data Logging | 100 | |
| USB Interface | √ | |
| Double Backlight | √ | |
| Analogue Bar Graph | √ | |
| Full Icon Display | √ | |
| Setup | √ | |
| Input Impedance for DCV | DC 200mV- Around 25GΩ，All Other Range： 10MΩ | √ |
| 4 - 20mA Loop | 0～100% | ±1%+50 |
| Fused 10 A | √ | |
| Current Measurement Alarm | √ | |
| Voltage & Current AC+DC Measurement | √ | |
| General Characteristic | ||
| Power | 9V Battery（6F22 | |
| LCD Size | 73mm X 50 mm | |
| Product Color | Red and Grey | |
| Product Net Weight | 384g | |
| Product Size | 200mm X 93mm X 40 mm | |
| Standard Accessories | Battery Test Lead Alligator Clip Test Clip USB Interface CablePC Software CDCarrying Bag Point Contact Temperature Probe | |
| Standard Individual Packing | Gift Box English Manual |
CONTENIDO DEL PAQUETE
- Multimetro UT71B
- Tientas
- Termocupla
- Clip de pruebas
- Cable USB
- Soporte
- Software
- Bateria
- Funda
- Manual de usuario
