multimetro digital prasek pr-88 autorango acdc500v 10a voltaje resistencia diodo continuidad transistor
Información del Vendedor

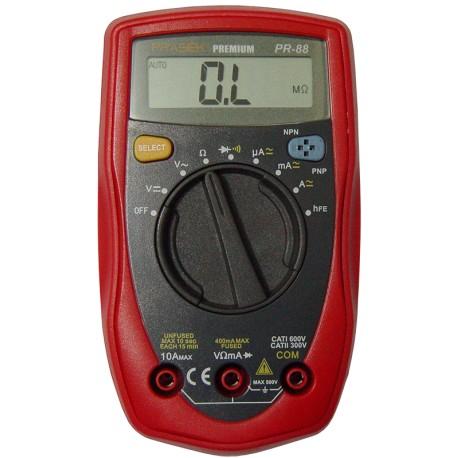

AibitechMultimetro Digital Prasek Premium PR-88 AutoRango ACDC500V 10A Voltaje Resistencia Diodo Continuidad Transistor
Especificaciones-
Tension maxima entre cualquier terminal y conexion a tierra- 500V rms
Proteccion con fusibles para VΩmA Terminal de Entrada- 500mA 250V Tipo Rapido φ5x20 mm
10A Terminal- Sin fusible
Rango Automatico
Visualizacion Maxima- 3999
Velocidad de medicion- Actualizacion 3 veces / segundo
Temperatura- Funcionamiento- 0°C ~40°C 32°F~104°F
Almacenamiento- -10°C ~50°C 14°F~122°F
Humedad Relativa- 75% @ 0°C - 30°C 50% @ 31 - 40°C
Altitud- Funcionamiento- 2000m
Almacenamiento- 10000m
PR80 Series | ||
Palm Size DigitalMultimeters | ||
PR-88 | ||
| ||
Specifications | Range | Best Accuracy |
Model |
| PR-88 |
DC Voltage V | 400mV/4V/40V/400V/500V | ±08%+1 |
AC Voltage V | 4V/40V/400V/500V | ±12%+3 |
DC CurrentA | 400μA/4000μA/40mA/400mA/4A/10A | ±1%+2 |
AC CurrentA | 400μA/4000μA/40mA/400mA/4A/10A | ±15%+5 |
Resistance Ω | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ/40MΩ | ±1%+2 |
Features | ||
DisplayCount |
| 4000 |
Auto Range |
| √ |
Diode |
| √ |
Transistor |
| √ |
ContinuityBuzzer |
| √ |
Low BatteryIndication |
| √ |
InputImpedance forDCV | Around 10MΩ | √ |
GeneralCharacteristic | ||
Power | 15V Batteries R03×2 | |
LCD Size | 48mm×16mm | |
ProductColor | Red and Grey | |
ProductNetWeight | 179g Including Holster | |
ProductSize | 130mm×735mm×35mm | |
Standard Accessories | BatteriesTestLeadHolster | |
Standard Individual Packing | GiftBoxEnglish Manual | |
Standard QuantityPer Carton | 60 PCs | |
Standard Carton Measurement | 490mm×356mm×315mm0055 CBMPer Standard Carton | |
Standard Carton Gross Weight | 18Kg |
