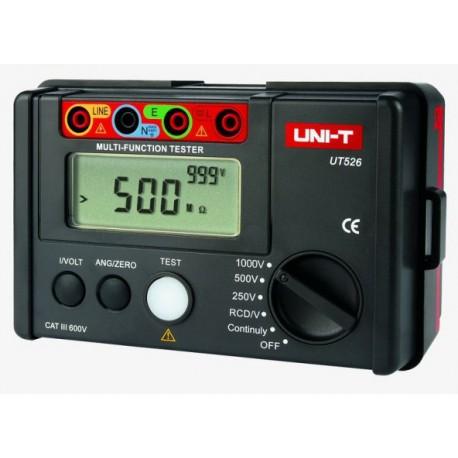

Megometro Digital UNI-T UT-526 Insulation Resistance 1000V AC DC 400V Comprobacion RCD

UNI-T UT526

SPECIFICATION-
Insulation Resistance Measurement-
Test Voltage- 250V/500V/1000V +/-10%+0
Test Current-
100V R100kOhm1mA +/- 10%+0
250V R250kOhm1mA +/- 10%+0
500V R500kOhm1mA +/- 10%+0
1000V R1MOhm 1mA +/- 10%+0
Test Current Short Circuit- <2mA
250V- 005MOhm ~ 200MOhm +/- 5%+5
500V- 005MOhm ~ 300MOhm +/- 5%+5
1000V- 005MOhm ~ 500MOhm +/- 5%+5
RCD Operational Voltage- 220V+/-10% / 45Hz ~ 65Hz
Test Current- 10mA/30mA/100mA/300mA 0~10%
Trip Time- 0ms--2000ms 1 n General 10mA +/-5%+2
Earth Resistance Measurement-
Test Voltage- Around 50V
Test Current- >200mA R<2W
Continuity Resistance Range- 000W ~ 2000W UT526 +/- 2%+5
Voltage Measurement-
AC/DC Voltage- 0~440V +/- 2%+3
Frequency- Reference Only

SPECIAL FUNCTIONS-
AC or DC Judgment- Voltage Measurement
Test Light
Phase Switch RCD- 0° and 180°
Low Battery Display

GENERAL CHARACTERISTICS-
Power- 15V Battery x 6
LCD Size- 71 mm x 34 mm
Product Color- Red and Grey
Product Net Weight- 380g
Product Size- 160 x 100 x 71 mm
Standard Accessories- Test Lead Battery English Manual Carrying Bag Alligator Clip

Manufacturer- UNI-TREND
