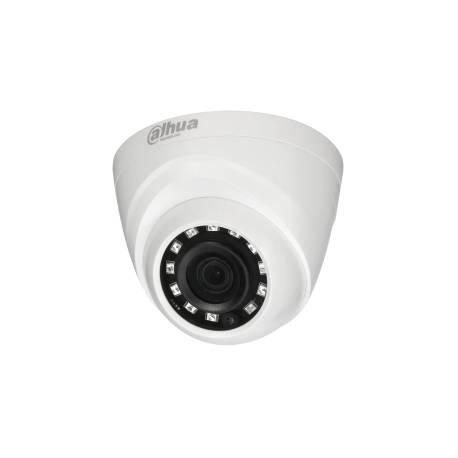

Camera

Image Sensor

1/27 CMOS

Effective Pixels

1920H×1080V 2MP

Scanning System

Progressive

Electronic Shutter Speed

PAL- 1/25~1/100000s

NTSC- 1/30~1/100000s

Minimum Illumination

002Lux/F185 30IRE 0Lux IR on

S/N Ratio

More than 65dB

IR Distance

Up to 20m 66feet

IR On/Off Control

Auto / Manual

IR LEDs

12

Lens

Lens Type

Fixed lens / Fixed iris

Mount Type

Board-in

Focal Length

36mm 28mm 6mm Optional

Max Aperture

F185

Angle of View

H- 899° 103° 547°

Focus Control

N/A

Close Focus Distance

600mm 900mm 2000mm

2362 3543 7874

DORI Distance

Note- The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect Observe Recognize and Identify respectively

DORI

Definition

Distance

Detect

25px/m

8px/ft

28mm- 42m139ft

36mm- 53m175ft

6mm- 80m262ft

Observe

63px/m

19px/ft

28mm- 17m55ft

36mm- 21m70ft

6mm- 32m105ft

Recognize

125px/m

38px/ft

28mm- 9m28ft

36mm- 11m35ft

6mm- 16m52ft

Identify

250ppm

76px/ft

28mm- 4m14ft

36mm- 5m17ft

6mm- 8m26ft

Pan / Tilt / Rotation

Pan/Tilt/Rotation

Pan- 0° ~ 360°

Tilt- 0° ~ 90°

Rotation- 0° ~ 360°

Video

Resolution

1080P 1920×1080

Frame Rate

25/30fps@1080P 25/30/50/60fps@720P

Video Output

1-channel BNC high definition video output / CVBS video output Can switch

Day/Night

Auto ICR / Manual

OSD Menu

Multi-language

BLC Mode

BLC / HLC / DWDR

WDR

DWDR

Gain Control

AGC

Noise Reduction

2D

White Balance

Auto / Manual

Smart IR

Auto / Manual
