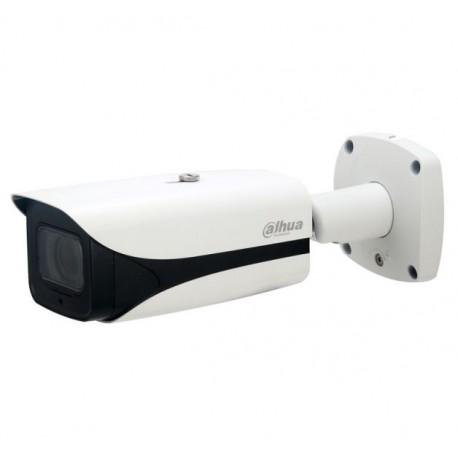

camara bullet ip dahua ipc-hfw5241e-ze ia 2mp 2.7-13.5mm face detection alarm ip67 ik10 microsd
Información del Vendedor
AibitechCamara Bullet IP Dahua IPC-HFW5241E-ZE IA 2MP 27-135mm Face Detection Alarm IP67 IK10 MICROSD
> 1/28” 2Megapixel progressive scan STARVIS™ CMOS
> H265 & H264 triple-stream encoding
> 25/30 fps@1080P 1920 × 1080
> WDR 120 dB Day/Night ICR 3D DNR AWB AGC BLC
> Multiple network monitoring- Web viewer CMS DSS/PSS & DMSS
> 53 mm–640 mm motorized lens
> 2/1 Alarm in/out 1/1 audio in/out
> Max IR LEDs Length 150 m
> Micro SD memory IP67 IK10
FICHA TECNICA
Camera | |||||
Image Sensor | 1/28” 2Megapixel progressive scan STARVIS™ CMOS | ||||
Effective Pixels | 1920 H × 1080 V | ||||
RAM/ROM | 512 MB/128 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
Minimum Illumination | 0002 Lux@F15 | ||||
IR Distance | Distance up to 150 m 492 ft | ||||
IR On/Off Control | Auto/Manual | ||||
IR LEDs | 4 | ||||
Lens | |||||
Lens Type | Motorized vari-focal | ||||
Mount Type | Board-in | ||||
Focal Length | 53 mm–640 mm | ||||
Max Aperture | F15 | ||||
Angle of View | H- 58°–4° V- 34°–2° | ||||
Aperture Type | Auto HALL | ||||
Close Focus Distance | 10 m–15 m 328 ft–492 ft | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 73m240ft | 29m95ft | 15m49ft | 7m23ft | |
T | 883m2897ft | 353m1158ft | 177m580ft | 88m289ft | |
Pan/Tilt/Rotation | |||||
Pan/Tilt/Rotation Range | Pan- 0˚–360˚ Tilt- 0˚–90˚ Rotation- 0˚–360˚ | ||||
Artificial Intelligence | |||||
Face Detection | Support face image capture | ||||
Face Attributes | Support 6 kinds of face attributes extraction- Age GenderExpression Jolly Surprise Normal Rage Sad Disgusted Confused Frightened Glasses Mouth Mask Moustache & Beard | ||||
Perimeter Protection | Tripwire intrusion Recognition of vehicle and people fast moving loitering detection parking detection and people gathering | ||||
People Counting | Support Line crossing/Region/Queueing people counting Support 4 accesses independent detection 4 areas independent detection | ||||
General Intelligence | |||||
Event Trigger | Motion detection Video tampering Scene changing Network disconnection IP address conflict Illegal Access Storage anomaly | ||||
General Intelligence | Object Abandoned/Missing | ||||
Heat Map | Yes | ||||
Video | |||||
Compression | H265H264H264BH264H MJPEG sub stream |
Smart Codec | Yes |
Streaming Capability | 3 Streams |
Resolution | 1080P 1920 × 1080/13 M 1280 × 960/720P 1280 × 720/D1 704 × 576/704 × 480/VGA 640 × 480/CIF 352 × 288/352 × 240 |
Frame Rate | Main Stream- 1080P 1 fps–25/30 fps |
Sub Stream- D1 1 fps–25/30 fps | |
Third Stream- 1080P 1 fps–6 fps | |
Bit Rate Control | CBR/VBR |
Bit Rate | H264- 32 Kbps–8192 Kbps H265- 19 Kbps–7424 Kbps |
Day/Night | Auto ICR/Color/B/W |
BLC Mode | BLC/HLC/WDR 120 dB |
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual |
Gain Control | Auto/Manual |
Noise Reduction | 3D DNR |
Motion Detection | Off/On 4 Zone Rectangle |
Region of Interest | Off/On 4 Zone |
Electronic Image Stabilization EIS | Yes |
Smart IR | Yes |
Defog | Yes |
Flip | 0°/90°/180°/270° |
Mirror | Off/On |
Privacy Masking | Off/On 4 Area Rectangle |
Audio | |
Compression | G711a G711Mu AAC G726 G723 |
Network | |
Ethernet | RJ-45 10/100 Base-T |
Protocol | IPv4IPv6HTTPHTTPSTCPUDPARPRTPRTSPRTCPRTMPSMTPFTPSFTPDHCPDNSDDNSQoSUPnPNTPMulticastICMPIGMPNFSPPPoE8021xSNMP |
Interoperability | ONVIF Profile S/Profile G/Profile T CGI Milstone Genetec P2P |
Streaming Method | Unicast/Multicast |
Max User Access | 20 Users |
Edge Storage | NASFTPSFTP Micro SD card 256 GB |
Web Viewer | IE versions newer than IE8 Chrome Firefox Safari versions newer than Safari 12 |
Management Software | Smart PSS DSS DMSS |
Smart Phone | iOS Android |
Certifications | |
Certifications | CE-LVD- EN60950-1 CE-EMC- Electromagnetic Compatibility Directive 2014/30/EU FCC- 47 CFR FCC Part 15 Subpart B UL/CUL- UL60950-1 CAN/CSA C222 No60950-1-07 |
Interface | |
Audio Interface | 1/1 channel In/Out |
