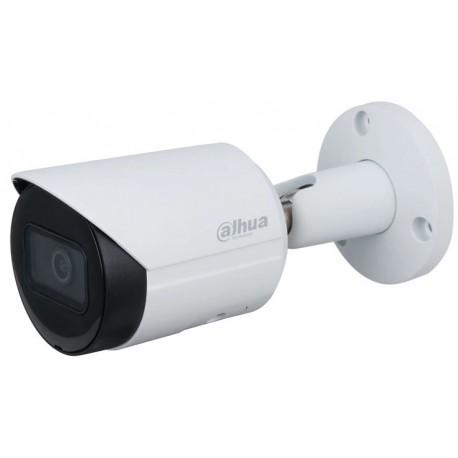

Camera

Image Sensor

1/27” 5Megapixel progressive CMOS

Effective Pixels

2592 H × 1944 V

ROM

128 MB

RAM

256 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min Illumination

0008 Lux@F16

IR Distance

30 m 9843 ft

IR On/Off Control

Auto/Manual

IR LEDs Number

1

Pan/Tilt/Rotation Range

Horizonal- 0°–360°
Vertical- 0°–90°
Rotation- 0°–360°

Lens

Lens Type

Fixed

Mount Type

M12

Focal Length

28 mm

Max Aperture

F16

Field of View

28 mm-

Horizonal- 1030°

Vertical- 710°

Diagonal- 1320°

Iris Type

Fixed aperture

Close Focus Distance

28 mm- 09 m 295 ft

DORI Distance

Lens

Detect

Observe

Recognize

Identify

28 mm

56 m 18373 ft

224 m

7349 ft

112 m

3675 ft

56 m

1837 ft

General IVS Analytics

Tripwire intrusion

Video

Video Compression

H265 H264 H264B MJPEG

Smart Codec

Yes

Video Frame Rate

Main stream-
2592 × 1944 1 fps-20 fps
2688 × 1520 1 fps-25/30 fps
Sub stream-
704 × 576 1 fps-25 fps
704 × 480 1 fps-30 fps

Stream Capability

2 streams

Resolution

2592×19442592×1944 2688×15202688×1520 3M2048×1536 2304×12962304×1296 1080p1920×1080 13M 1280 × 960 720p1280×720 D1704× 576/704×480 VGA640×480 CIF352×288/352×240

Bit Rate Control

CBR/VBR

Video Bit Rate

H264- 32Kbps ~ 8192Kbps

H265- 12Kbps ~ 8192Kbps

Day/Night

AutoICR/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON 4 areas rectangular

Region of InterestRoI

Yes 4 areas

Smart IR

Yes

Image Rotation

0°/90°/180°/270° Supports 90°/270° with 2688 × 1520 resolution and lower

Mirror

Yes

Privacy Masking

4 areas

Network

Network

RJ-45 10/100 Base-T

Protocol

IPv4 IPv6 HTTP HTTPS TCP UDP ARP RTP RTSP RTCP RTMP SMTP FTP SFTP DHCP DNS DDNS QoS UPnP NTP Multicast ICMP IGMP NFS PPPoE 8021x Bonjour

Interoperability

ONVIF Profile S/Profile G CGI P2P Milestone Genetec

User/Host

20

Edge Storage

Cloud FTP SFTP Micro SD Card support max 256 GB NAS

Browser

IE

Chrome

Firefox

Management Software

Smart PSS DSS DMSS

Mobile Phone

IOS Android

Certification

Certifications

CE-LVD- EN60950-1
CE-EMC- Electromagnetic Compatibility Directive 2014/30/EU
FCC- 47 CFR FCC Part 15 Subpart B
UL/CUL- UL60950-1 CAN/CSA C222 No60950-1-07

Power

Power Supply

12V DC/PoE 8023af

Power Consumption

< 56W

Environment

Operating Conditions

-40°C to +60°C -40°F to +140°F/less than ≤ 95%

Storage Temperature

-40°C to +60°C -40°F to +140°F

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

1662 mm × Φ70 mm 654 × Φ276

Net Weight

048 kg 11 lb

Gross Weight

057 kg 13 lb
