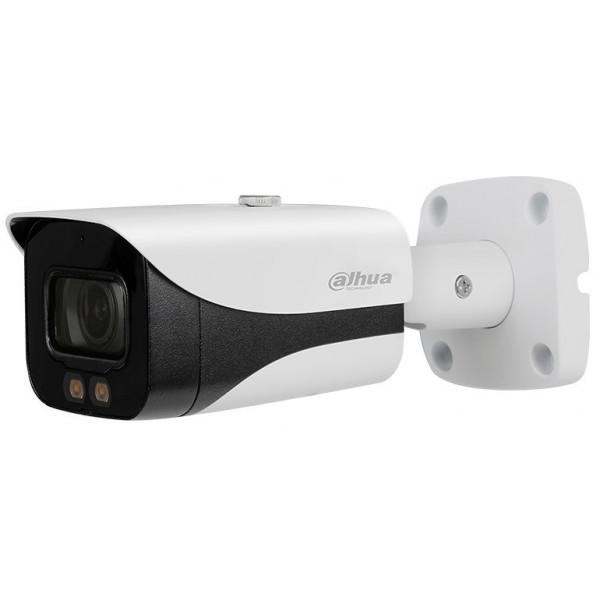

camara bullet dahua hac-hfw2249e-a-led 2mp 1080p 2k 3.6mm 4en1 mic ip67 metal
Información del Vendedor
AibitechCamara Bullet Dahua HAC-HFW2249E-A-LED 2MP 1080P 2K 36mm 4en1 MIC IP67 Metal
FICHA TECNICA
Camera | |
Image Sensor | 1/28 CMOS |
Effective Pixels | 1920H×1080V 2MP |
Scanning System | Progressive |
Electronic Shutter Speed | PAL- 1/4s~1/100000s NTSC- 1/3s~1/100000s |
Minimum Illumination | 0001Lux/F10 0Lux LED on |
S/N Ratio | More than 65dB |
LED Distance | 40m131ft |
LED On/Off Control | Auto/Manual |
LEDs | 2 |
Lens | |
Lens Type | Fixed lens / Fixed iris |
Mount Type | Board-in |
Focal Length | 36mm 6mm Optional |
Max Aperture | F10 |
Angle of View | H- 895° 538° V- 473° 30° |
Focus Control | N/A |
Close Focus Distance | 1600mm 3500mm 63 138 |
Pan / Tilt / Rotation | |
Pan/Tilt/Rotation | Pan- 0° ~ 360° Tilt- 0° ~ 90° Rotation- 0° ~ 360° |
Video | |
Resolution | 1080P 1920×1080 |
Frame Rate | 25/30fps@1080P 25/30/50/60fps@720P |
Video Output | 1-channel BNC high definition video output / CVBS video output DIP switch |
Day/Night | Color |
OSD Menu | Multi-language |
BLC Mode | BLC / HLC / WDR |
WDR | 120dB |
Gain Control | AGC |
Noise Reduction | 2D/3D |
White Balance | Auto / Manual |
Smart Light | Auto / Manual |
DORI Distance | ||
Note- The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect Observe Recognize and Identify respectively | ||
DORI Definition | Distance | |
Detect | 25px/m 8px/ft | 36mm- 53m174ft 6mm- 83m272ft |
Observe | 63px/m 19px/ft | 36mm- 21m69ft 6mm- 33m108ft |
Recognize | 125px/m 38px/ft | 36mm- 11m36ft 6mm- 17m56ft |
Identify | 250px/m 76px/ft | 36mm- 5m16ft 6mm- 8m26ft |
